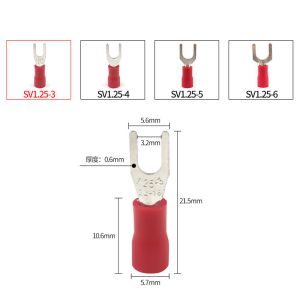

SV 1.25-3 Series Insulated Spade Crimp Terminals

Ask Lasest Price
Brand Name :	StarPey
Certification :	UL, CE
Model Number :	SV1.25
Price :	US $0.03 / Piece
Delivery Time :	7-20 working days
Payment Terms :	T/T, L/C, Paypal, Payoneer
Supply Ability :	1KK poles monthly

Add to Cart

Product Details
Company Profile

SV 1.25-3 Series Insulated Spade Crimp Terminals

Specifications

1.Material:copper and PVC
2.Plating:Tin
3.Certificates: ROHS
4.OEM/ODM
5.Various wire range

Crimp terminal, cable plug, cable connector, SV Insulated Spade Crimp Terminal

1.Material:copper and PVC
2.Plating:Tin
3.Certificates: ISO.ROHS
4.OEM/ODM
5.Various wire range

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, ailway, shipbuilding, spaceflight & avition, light industry, household electrical, computers, auto-equipment and etc.

2) Processing: Cold press

3) Material: T2 copper with tinned surface, cridible conductivity; PVC insulation cover, no break or rebound.

4) Certificate: ISO9001-2008

5) Manufacturer: price advantage, quick delivery

Cable size:0.5~1.5mm²(A.W.G.22-16) Max current:Imax=19A Material: purple copper Thickness:0.75mm
No.	Item No.	Dimension							Color
No.	Item No.	US system of bolts	Screw dia. D2(mm)	B(mm)	L(mm)	F(mm)	H (mm)	D (mm)	Color
1	SV1.25-3.2	#4	3.2	5.7	21.2	6.5	10.0	4.3	Red
2	SVS1.25-3.7	#6	3.7	5.7	21.2	6.5
3	SVL1.25-3.7	#6	3.7	6.4	21.2	6.5
4	SV1.25-4S	#8	4.3	6.4	21.2	6.5
5	SVM1.25-4	#8	4.3	7.2	21.2	6.5
6	SVL1.25-4	#8	4.3	8.1	21.2	6.5
7	SVS1.25-5	#10	5.3	8.1	21.2	6.5
8	SVL1.25-5	#10	5.3	9.5	21.2	6.5
9	SVS1.25-6	1/4	6.5	9.5	21.2	6.5
10	SVL1.25-6	1/4	6.5	12.0	27.2	11.0
Cable size:1.5~2.5mm²(A.W.G.16-14) Max current:Imax=27A Material: purple copper Thickness:0.8mm
No.	Item No.	Dimension							Color
No.	Item No.	US system of bolts	Screw dia. D2(mm)	B(mm)	L(mm)	F(mm)	H (mm)	D (mm)	Color
11	SV2-3.2	#4	3.2	5.7	21.2	6.5	10.0	4.9	blue
12	SVS2-3.7	#6	3.7	5.7	21.2	6.5
13	SVL2-3.7	#6	3.7	6.0	21.2	6.5
14	SVS2-4	#8	4.3	6.4	21.2	6.5
15	SVM2-4	#8	4.3	7.2	21.2	6.5
16	SVL2-4	#8	4.3	8.1	21.2	6.5
17	SVS2-5	#10	5.3	8.1	21.2	6.5
18	SVL2-5	#10	5.3	9.5	21.2	6.5
19	SVS2-6	1/4	6.5	9.5	21.2	6.5
20	SVL2-6	1/4	6.5	12.0	27.2	11.0
Cable size:2.5~4mm²(A.W.G.14-12) Max current:Imax=37A Material: purple copper Thickness:1.0mm
No.	Item No.	Dimension							Color
No.	Item No.	US system of bolts	Screw dia. D2(mm)	B(mm)	L(mm)	F(mm)	H (mm)	D (mm)	Color
21	SV3.5-4	#8	4.3	8.0	24.8	7.0	12.5	6.2	black
22	SV3.5-5	#10	5.3	8.0	24.8	7.0
23	SV3.5-6	1/4	6.5	12.0	28.0	12.1
Cable size:4~6mm²(A.W.G.12-10) Max current:Imax=48A Material: purple copper Thickness:1.0mm
No.	Item No.	Dimension							Color
No.	Item No.	US system of bolts	Screw dia. D2(mm)	B(mm)	L(mm)	F(mm)	H (mm)	D (mm)	Color
24	SV5.5-3.5	#6	3.7	8.3	25.2	7.5	12.5	6.7	yellow
25	SVS5.5-4	#8	4.3	8.3	25.2	7.5
26	SVL5.5-4	#8	4.3	9.0	23.9	7.5
27	SV5.5-5	#10	5.3	9.0	23.9	7.5
28	SVS5.5-6	1/4	6.5	9.0	23.9	7.5
29	SVL5.5-6	1/4	6.5	12.0	31.2	12.0
30	SV5.5-8	5/16	8.4	14.0	30.0	11.5

SV 1.25-3 Series Insulated Spade Crimp Terminals
